1p 2p 4p ELCB Gwiec 32A Dz47le-63 Earth Leakage Circuit Breaker
GWIEC Yueqing Factory Electrical Leakage Protection Dz47Le Rcbo Circuit Breaker

Product description:

Residual Current Circuit Breaker Feature:
1.DZ47LE RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 1 phase 230V and 3 phase 400V, rated current up to 63A
2.When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value, the RCBO can cut off the power within the time of 0.1s automatically to protect the personal safety and preventing the equipment from the fault resulted by the residual current
3.With this function, the RCBO can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions
4.It conforms to IEC61009 standard

Residual Current Circuit Breaker Specification:
Number of Poles1P+N, 2P, 3P, 3P+N, 4P
Rated current (A)6, 10, 16, 20, 25, 32, 40,53,60
Rated operating current (mA)30, 100, 300, 500
Rated non operation (lΔn)(mA)≤0.5lΔn
Rated voltage (V)220 / 380
Tripping curveC,D
TypeElectronic

1p 2p 4p ELCB Gwiec 32A Dz47le-63 Earth Leakage Circuit Breaker
1p 2p 4p ELCB Gwiec 32A Dz47le-63 Earth Leakage Circuit Breaker

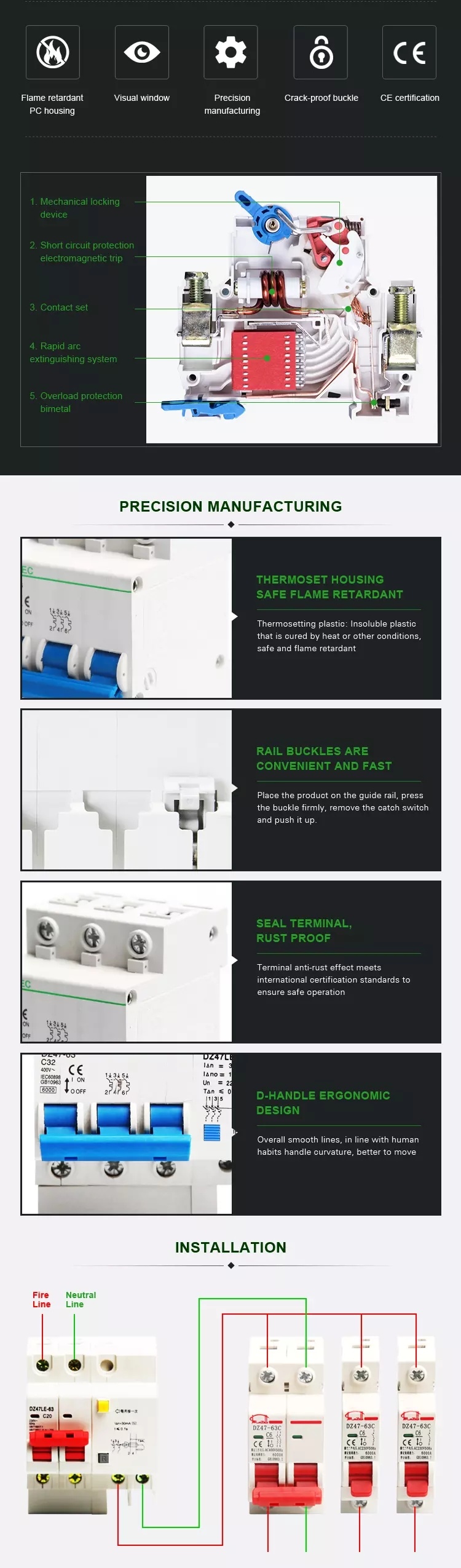

Normal Operation and Mounting Requirement:
1.Circumstance temperature -5~40ºC,average temperature not exceeding 35ºC
2.Altitude above sea level less than 2000m
3.Humidity not exceeding 50% +40ºC and not exceeding 90% +25ºC
4.Installation class II or III;Pollution class II
5.Installation method DIN Rail mounting type
6.The external magnetism shall not be more than 5times of terrestrial one
7.Product shall be installed vertically at the place where there shall be no severe impact and vibration
8.The product is switched on when the handle is at upper position

Residual Current Circuit Breaker Operation Prinsiple:

1p 2p 4p ELCB Gwiec 32A Dz47le-63 Earth Leakage Circuit Breaker
