Product Description

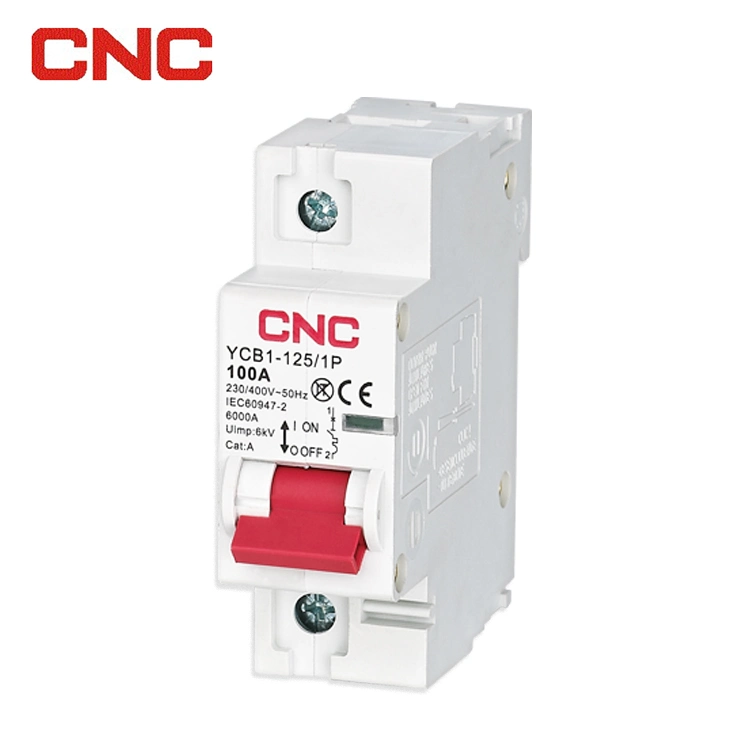

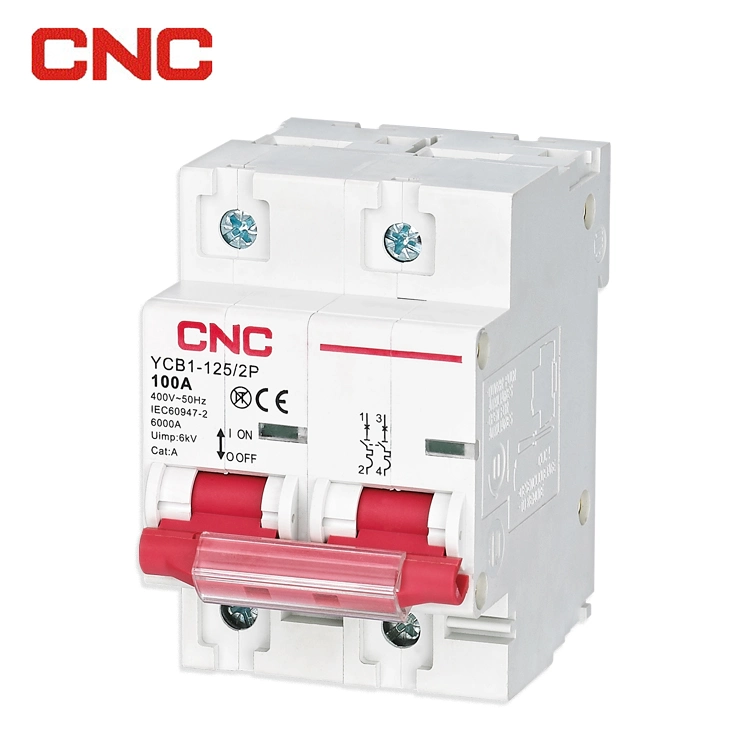

3p 50a Miniature Circuit Breaker 3p 32a MCB Miniature Circuit Breaker 3p 32 AMP Circuit Breaker MCB
Application:For protecting cables and equipments against overload and short circuit..
Product Detail
Poles | 1 2 3 4 |
Rated Current In (A) | 6 10 16 25 32 40 50 63 80 100 125 |
Rated breaking capacity | 6000 |
Insulation Voltage Ui (V) | 500 |
Electrical Life (t) | 1500 |
Mechanical life | 8000 |
Rated Voltage Ue (V) | 230/400 |
Terminal connection type | Cable/Pin-type busbar |
Connection | From top |
Product Keywords | 125a circuit breaker,125a,125 amp mccb 35ka |
General
Application:
For protecting cables and equipments against overload and short circuit.
GeneraI rules for choosing MCB.
Technical data of the network at the point considered:
The earthing systems, short-circuit current at the circuit breaker installation point, which must always be less than the breaking capacity of this device, network normal voltage.1.2.
