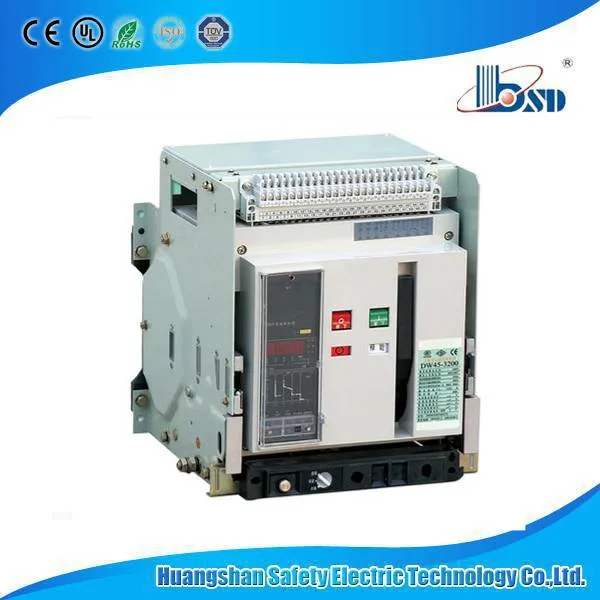

DW45 3P 4P ACB air circuit breakera are applicable for AC 50/60Hz with rated voltage 400V, 690V and rated current 200A 400A 630A 800A 1000A 2500 3200A 6300A electrical circuit .  Air circuit breaker is applied to distribute and protect circuit and load equipment from overload, under- voltage, short-

Featured Products

DW45 3P 4P ACB air circuit breakera are applicable for AC 50/60Hz with rated voltage 400V, 690V



and rated current 200A 400A 630A 800A 1000A 2500 3200A 6300A electrical circuit .





Air circuit breaker is applied to distribute and protect circuit and load equipment from overload, under-



voltage, short-circuit damage and single-phase earthing.





Air circuit breaker is essential to  the safety and normal usage of electricity user.



Strengths of Jubang Air Circuit Breaker



  Maintenance free. Stable in operation.

 High breaking overload and short-circuit capacity.

 Module structure.

 Conforms to IEC60947 standard.



Installation of air circuit breaker



 Temperature : -5°c~+40°c ; the average value within 24h not exceed +35°c.



 Elevation: altitude of installation place shall not  2000m.
Dw15 Series Acb/ Air Circuit Breaker/Frame Circuit Breaker

Specification of Air Circuit Breaker



Type

                             DW45-1000

DW45-2000DW45-3200DW45-4000DW45-6300

Frame rated

current Inm (A)

10002000320040006300
Number of poles3,43,43,43,43,4
Rated current In (A)

200,400,630,

800,1000

630,800,1000,

1250,1600,2000







2000,2500,3200



2000,2500,3200,40004000,5000,6300
Icu (kA)O-CO400V4280100100120
690V2550656580
Ics (kA)O-CO-CO400V3050656580
690V2040505070
Icw(kA)O-CO400V20506565/80(MCR)85/100(MCR)
690V20405050/65(MCR)65/75(MCR)

Rated current

at N-pole In (A)

50%In, 100%In

Inherent making&

breaking

time

23-32ms

Operational performance (operations)

Electric

life

500
Mechanical lifeMaintenance-free2500 Maintenance 10000

Mounting

mode

Fixed with drawable

Arcing

distance(mm)

0

Intelligent

controller

Standard type(M)                    Telecommunication type (H)
