Product Overview

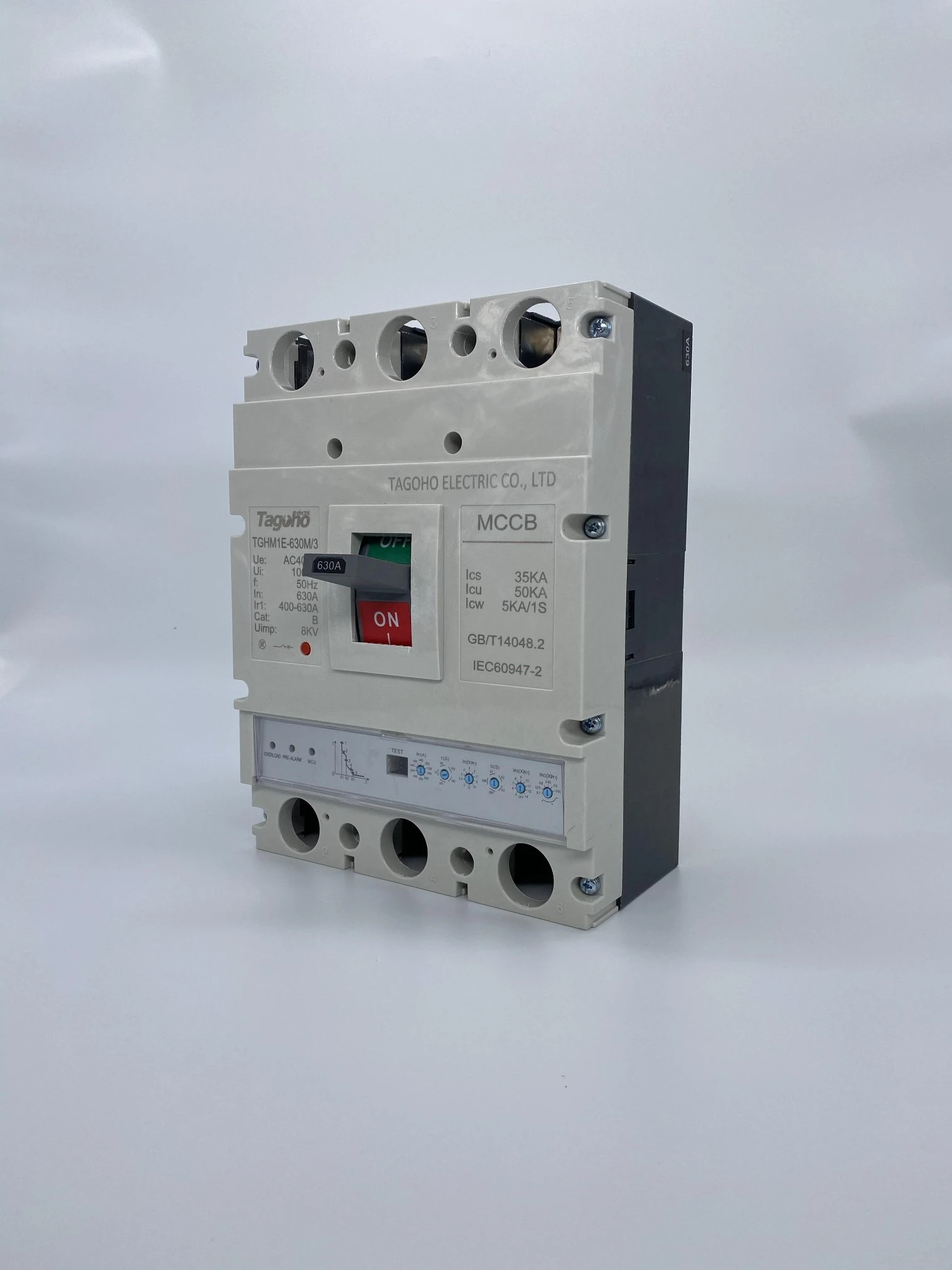

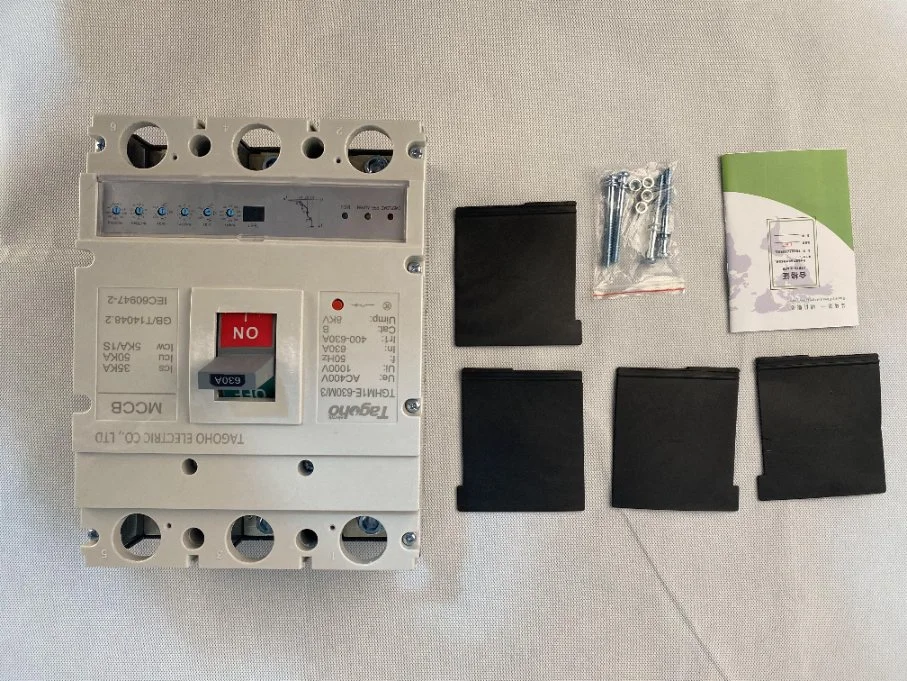

TGHM1 Electronic Moulded Case Circuit Breaker(MCCB)
TGHM1E series electronic molded case circuit breaker (hereinafter referred to as circuit breaker), suitable for 50Hz (or 60Hz), its rated insulation voltage is 1000V, rated working voltage is 400V and below, and the rated working current is up to 800A in the circuit infrequent conversion and motor Used for infrequent starting. The circuit breaker has overload long delay inverse time limit, short circuit short delay inverse time limit, short circuit short delay time limit, short circuit instantaneous and undervoltage protection functions, residual current protection (optional), phase loss protection function (optional), To protect the circuit and power equipment from damage, the circuit breaker has complete and accurate protection characteristics, which can improve the reliability of power supply and avoid unnecessary power outages. The circuit breaker has the characteristics of small size, high breaking capacity, short arcing and anti-vibration.
Features
· Short circuit short delay inverse time
· Short circuit short time delay definite time
· Short-circuit transient
· Undervoltage protection function
· Residual current protection
· Phase loss protection function
Product Paramenters
| TGHM1 Electronic Moulded Case Circuit Breaker(MCCB) | ||||||
Model | TGHM1E-125M/3 | TGHM1E-250M/3 | TGHM1E-400M/3 | TGHM1E-630M/3 | TGHM1E-800M/3 | |
Inm(A) | 125 | 250 | 400 | 630 | 800 | |
In(A) | 63,65,70,75,80,85,90,95,100,125 | 100,125,140,160,180,200,225,250 | 200,225,250,280,315,350,400 | 400,420,440,460,480,500,530,560,600,630 | 630,640,660,680,700,720,740,760,780,800 | |
Ue(V) | AC 400V | |||||
Ui(V) | AC 1000V | |||||
Uimp | AC 8KV | |||||
Pole No. | 3P, 4P | |||||
Icu | 50KA | |||||
Ics | 35KA | |||||
Icw | 5KA/1S | |||||
Use class | B | |||||
Operational performance (Times) | On-power | 3000 | 3000 | 2000 | 1500 | 1500 |
Off-power | 7000 | 7000 | 4000 | 3000 | 3000 | |
Dimensions (mm) | L | 90 | 105 | 150 | 210 | 210 |
W | 90+20 | 90+20 | 115+40 | 120+40 | 120+40 | |
H | 150 | 165 | 260 | 280 | 280 | |
Arcing distance | ≤50 | ≤50 | ≤106.5 | ≤100 | ≤100 | |
Standard | GB/T14048.2 IEC60947-2 | |||||
Temperature | -5ºC-+C40ºC | |||||
Relative humidity | (Ambient temperature 25ºC) | |||||
