1. Brief instruction
- Protection function: Monitor the power consumption at the output end. In case of any abnormal situation, the power supply can be cut off quickly and automatically.
- Automatic reclosing:Realize unattended, the circuit can be automatically reclosing after returning to normal;
- Metering performance:High-precision real-time monitoring of voltage and current and power metering, which is conducive to energy consumption analysis on the power side;
- Wireless communications:With local RS485 and GPRS(2G /3G) wireless communication, it can realize remote on-off control, fault inquiry and timely reporting of measurement data.
- Equipment management:With perfect fault condition monitoring (overload, short circuit, over voltage, phase, phase imbalance) and real-time reporting and warning.
- Electricity management:With rates in line with national standards piecewise measurement, frozen data, etc. Combined with wireless communication, it can realize remote management of electricity charge and turn off arrears.

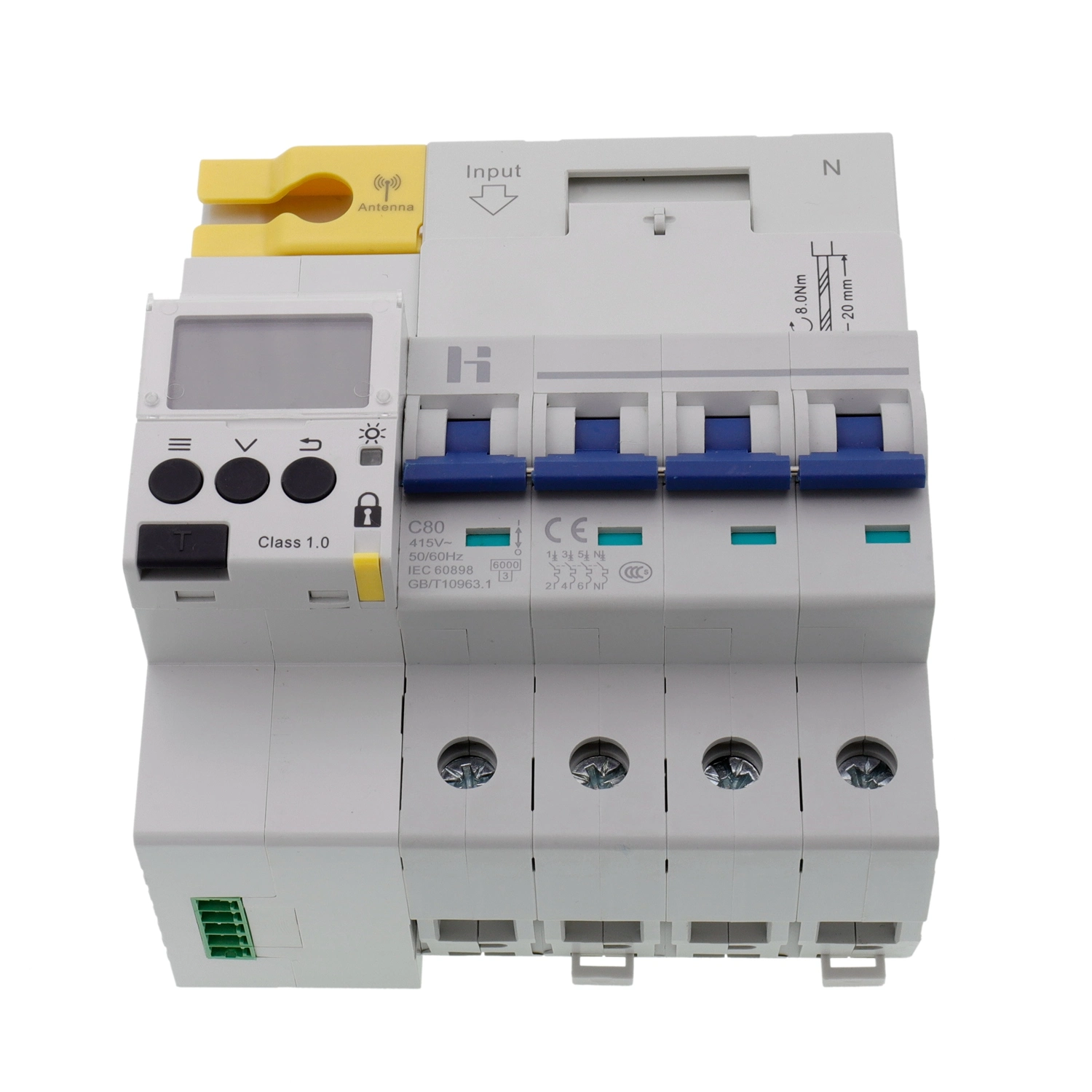

- Friendly display interface:With large LCD display, remote and local information exchange can be achieved. Measurement parameters and equipment status information at a glance.
|Standard RS485 / NetworkGPRS-2G/3G+RS485|
|Product Standard||GB10963.1,GB/T17215.211-2006, GB/T17215.322-2008,|
DL/T1487-2015, DL/T1485-2015, DL/T533-2007,
|Protection||sort circuit, overload, over/under voltage, phase loss, alarm, remote|
control, meter, etc
|Power lines||1 Line|
|2500V/min Tripping time:<0.2S|
|TypeB, TypeC, TypeD|
|5A max(250VAC)resistor load|
|280/115V( default value, configurable in platform)|
|63/80A( default value, configurable in platform)|
|Operation time||Trip≤0.3s, Reclose≤0.8s(exclude time delay)|
|Installation||DIN installation of 35mm|
|-25°C~+65°C / -40°C~+75°C|
|Identified the circuit fault, the electrician should pull out the safety lock and hang with a lock to solve the problem. Then, push back the safety lock, and try manually switching on the handle. If unsuccessful, electrician needs to check credit overdue or remotely switched off, by|
either RS485 or GPRS.
|It is under operation mode while safety lock not pulled out.|
|It is under maintenance mode while safety lock is pulled out and needs to hang a lock. This safety lock has interlock with handle, and can't switch on, even manually, while lock pulled out. More security to|
