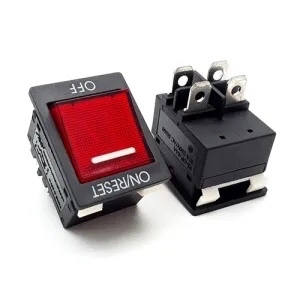

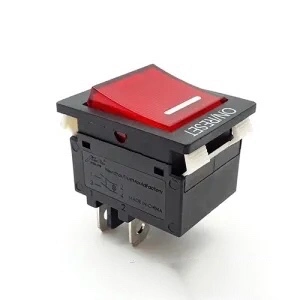

Dpdt 5A 10A 15A 20A 25A Reset Circuit Breaker Switch Rocker Thermal Overload Protector Switch
---The circuit breaker oill trip if there is over current the reset button current iump upwad and cut off the ciucuit after fault is elimin ated push the reset button aod monnect the circuit again.
Advantage
--------------------------
The Basic Technical Parameters
-------------------------------------------------------------------
Main Technical Parameters
--------------------------------------------------------------------
SHIPPING && PAYMENT
-------------------------------------------------------------
Packaging Detail: Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment Detail: Paypal, T/T, Western union, MoneyGram, or other methods.
Company information
-------------------------------------------------------------
---The circuit breaker oill trip if there is over current the reset button current iump upwad and cut off the ciucuit after fault is elimin ated push the reset button aod monnect the circuit again.
Advantage
--------------------------
| NO.1 | Good quality! |
| NO.2 | 16 years manature! |
| NO.3 | Many types of circuit breaker switch we can supply |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | The best indicator light at the best price! |
The Basic Technical Parameters
-------------------------------------------------------------------
| Working Voltage | Min. 12V, Max. 125V |
| Double Usage | DC & AC |
| Current | 10A, 15A, 16A, 20A |
| Insulated Resistance | >=100MΩ |
| Dielectric Strength | >=1500VAC/1 min |
| Electrical Life | >=10000 cycles |
Main Technical Parameters
--------------------------------------------------------------------
| Experimental Current | Starting Condition | Experimental Time | Expect Result |
| 1In | Cold Start | 1h | Not Trip |
| 1.5In | Followed The Experiment | t<=1h | Trip |
| 2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
| 6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
| 10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |
